Still Spirits Create + T500 Boiler

B2B-8592

Regular price £209.95
4 in stock

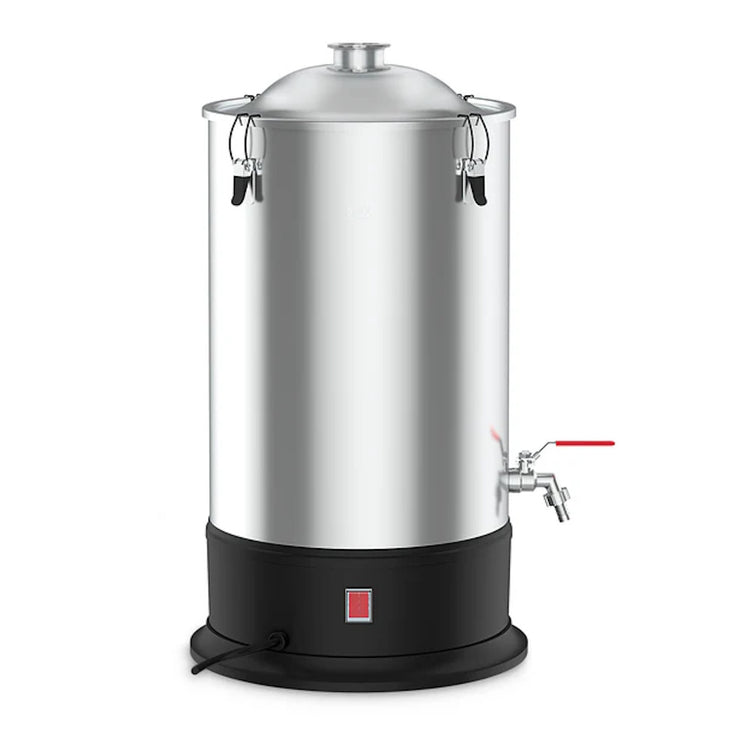

The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Create+ Boiler is designed for distillers seeking precise control and versatile functionality.

When paired with the Create+ T500, it can produce high-quality and high ABV neutral alcohol (vodka) or distilled water. When paired with the Create+ Alembic Copper Dome & Condenser it can create flavoursome spirits (gin, whiskey, rum and bourbon) and aromatic hydrosols, retaining delicate flavours and aroma from your wash or botanicals. The Create+ Boiler 25 L includes a 2" Tri-Clamp to DN40 Threaded Adapter allowing for connection to 2" tri-clamp accessories, so you can experiment with different setups and attachments.

It features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units, or 1600W for 120V units. You can lower this to 1100W by switching one of the two switches off (220V unit) or by switching off the 500W switch (120V unit). This is ideal for maintaining a gentler boil during distillation, especially for dark spirits like whiskey, rum, and bourbon.

For safety during operation the boiler features an automatic reset switch. The stainless-steel ball valve tap provides durability and ease of use when discarding your contents after distillation.

Elevate your distillation experience with the Create+ Boiler 25 L, designed for flexibility, precision, and superior results across a range of applications. Whether you’re crafting spirits, distilling water, or producing hydrosols, the T500 Boiler offers the control and performance you need.

Features:

• Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
• Designed in New Zealand
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity
• Connects to 2" tri-clamp distilling accessories
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

Specifications:

• Capacity: 25 L
• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2000W (1600W for US/CA Units)
• Warranty: 3 years

NOTE: The Threaded Adapter is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

What's Included:

• Create+ Boiler 25 L
• Create+ Boiler Lid
• 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
• Instructions
